DIMENSIONS |
| LOA: 35' |
Beam: 10'8 |
Displacement: 13,000 |
| Draft: 4'11 |
Ballast:
5000 | |
|
ENGINES |
| Engine(s): YANMAR DIESEL |
Engine(s) HP:
30 | |
|
TANKAGE |
Fuel:
32 GALLONS |
Water:
64 GALLONS |
Holding:
22 GALLONS |
|
ACCOMMODATIONS AND LAYOUT
 |

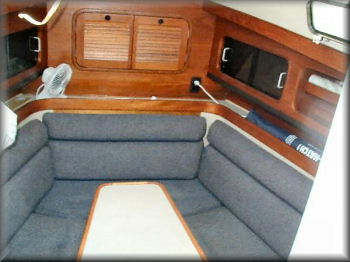

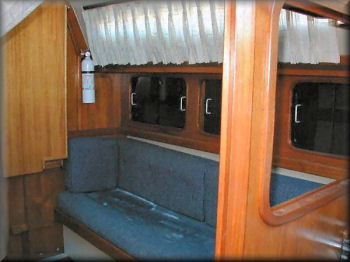

SLEEPS 4 OWNERS AND GUESTS, ON THE
DOUBLE FORWARD DINETTE BERTH, AND THE AFT DOUBLE QUARTER BERTH.
|
|

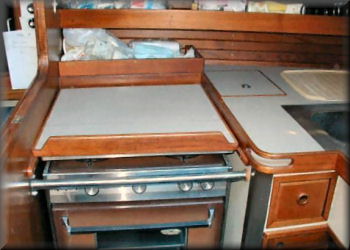

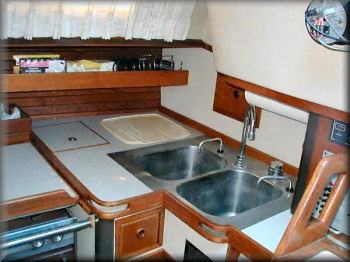

U-SHAPED GALLEY TO STARBOARD, WITH 3 BURNER ALCOHOL STOVE WITH
OVEN, ICEBOX, AND DOUBLE STAINLESS STEEL SINK.
|
|

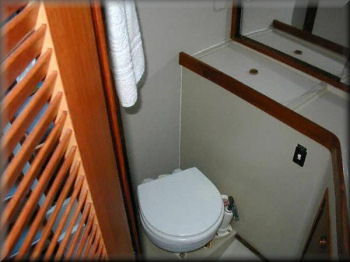

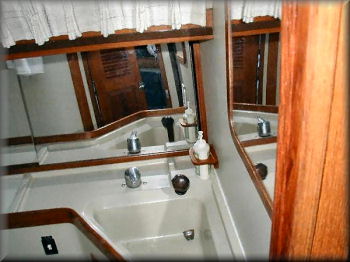

HEAD TO PORTSIDE
WITH MOLDED SHOWER STALL, VANITY WITH SINK, AND MARINE TOILET.
|
|
MAST
|
PAINTED ALUMINUM ALLOY EXTRUSION
WITH INTEGRAL SLOT FOR BOLT ROPE SLUGS. |
|
BOOM
|
PAINTED ALUMINUM ALLOY EXTRUSION
WITH INTEGRAL MAINSAIL FOOT GROOVE; SLAB REEFING GEAR AND OUTHAUL
/ REEF WINCH ON BOOM. |
|
RIGGING
|
STANDING: STAINLESS STEEL RIGGING,
TANGS, TURNBUCKLES AND TOGGLES. NO. 10 ROD FORESTAY AND BACKSTAY.
NO. 10 UPPERS, NO. 8 LOWERS, NO. 4 INTERMEDIATES. |
|
RUNNING: INTERNAL MAIN AND GENOA HALYARDS, 7/16" BRAIDED
DACRON. 5/8" BRAIDED DACRON GENOA SHEETS, 1/2" BRAIDED
DACRON MULTI-PART MAIN SHEET WITH RATCHET BLOCK. |
|
ELECTRICAL
|
12 VOLT DC SHIPS POWER
|
|
110 / 220 VOLT AC DOCKSIDE POWER |
|
30 AMP |
|

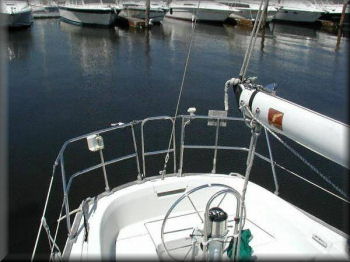

STEERING
|
28" DIAMETER "DESTROYER"
TYPE WHEEL ON PEDESTAL WITH THROTTLE AND SHIFT CONTROLS. EMERGENCY
TILLER FITTING. |
|
WINCHES
|
MAIN HALYARD - NO. 10 B.C.
|
|
GENOA HALYARD - NO. 18 S/S
|
|
GENOA SHEET - NO. 25 B.C. (2)
|
|
OUTHAUL/REEF - NO. 10 B.C
|
|
HANDLES: 2 STANDARD, 1 LOCK - IN |
|
RUDDER
|
MOLDED FIBERGLASS WITH STAINLESS
STEEL SHAFT. |
|
OTHER HARDWARE
|
CAST ANODIZED STEMHEAD FITTING
WITH INTEGRAL MOORING CHOCKS, HEADSTAY CHAINPLATE AND JIB TACK
SHACKLE FITTINGS, AND 2 ANCHOR RODE ROLLERS |
|
TWO ANODIZED ALUMINUM BOW
MOORING CLEATS.
|
|

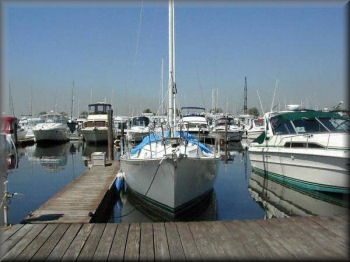

WELDED STAINLESS STEEL WALK -
THROUGH BOW PULPIT WITH STEP |
|
SELF - DRAINING FOREDECK LOCKER
FOR GROUND TACKLE AND GEAR, WITH HINGED LID |
|
WELDED STAINLESS STEEL DIVIDED
STERN PULPIT WITH GATE |
|
FLAGPOLE SOCKET AND FOLD UP
INTEGRATED SWIM LADDER |
|
TEAK HANDRAILS ON CABIN
TOP |
|
2 - 6' INBOARD GENOA SHEETING
TRACKS, WITH 2 LOW - LEAD CARS |
|
MAIN SHEET TRAVELER WITH ROLLER
BEARING CAR AND STOPS |
|
MANUAL BILGE PUMP MOUNTED IN
COCKPIT |
|
2 - ANODIZED ALUMINUM STERN
MOORING CLEATS |
|
VINYL COATED 7 X 19 UPPER
LIFELINES |
|
STAINLESS STEEL STANCHIONS
MOUNTED ON CAST ALUMINUM BASES, BOLTED THROUGH HULL/DECK JOINT |
|
DECK DRAINS
|
|
DORADE GUARD RAIL |
|
MECHANICAL AND ENGINE
|
BATTERY CHARGER
|
|
BATTERY ON / OFF SWITCHES
|
|
BILGE BLOWER
|
|
BILGE PUMPS
|
|
FUEL SHUT OFF VALVES
|
|
FUEL FILTERS |
|
FRESH WATER COOLED ENGINE
|
|
HIGH ENGINE TEMPERATURE ALARM
|
|
HOT WATER HEATER
|
|
LOW OIL PRESSURE ALARM
|
|
SEA WATER STRAINER |
|
DECK AND COCKPIT
|
BOW RAILS
|
|
COCKPIT CUSHIONS
|
|
DOCKSIDE FRESH WATER CONNECTION
|
|
HORN |
|
NAVIGATION LIGHTS
|
|
SELF BAILING COCKPIT
|
|
SPREADER LIGHTS
|
|
SWIM LADDER |
|

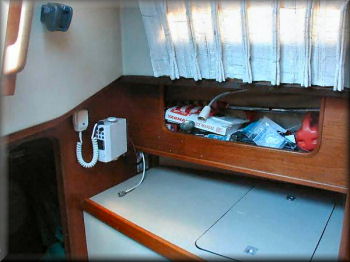

ELECTRONICS
|
COMPASS
|
|
DEPTH FINDER |
|
GPS
|
|
VHF RADIO |
|
